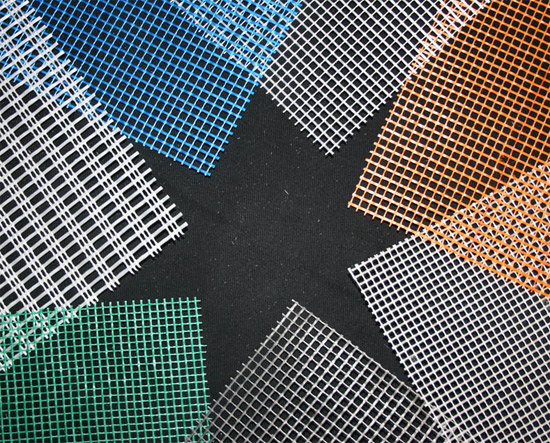

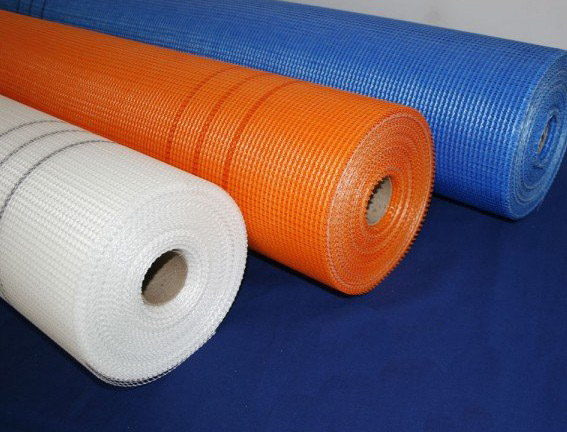

Reinforced fiberglass mesh

The fiberglass mesh is made from the fiberglass, on which the alkali resistant materials is coated. Product features:
1.High performance in chemical-corrosion resistance;
2.High strength;
3.Good agglutination capacity and fixation performance.

Application Cases:
The Fiberglass Mesh is made from the medium-alkali or non-alkali fiberglass mesh greige, on which the alkali resistant materials coated. The product comes with high strength, excellent cohesive property, and good agglutination capacity and fixation performance. It is widely applied in wall reinforce, external wall heat presrvation and roofing water release. It is also applied in reinforcing cement, pitch,marble and mosaic construction. The fiberglass mesh is an ideal engineering material in buliding industry.

SPECIFICATIONS

Item No.	300 330 密度350		Grid Mesh (mm)		Mesh Hole (mesh/Inch)		(g/m2)	（n/50mm） Fensile Breaking Force
Item No.	warp	weft	warp	weft	warp	weft	(g/m2)	warp	weft
1	50	204	5	5	5	5	70±3	700	800
2	50	306	5	5	5	5	90±3	700	900
3	100	330	5	5	5	5	125±3	1100	1300
4	134	330	5	5	5	5	145±5	1500	1500
5	134	408	5	5	5	5	160±5	1500	1650
6	50	204	4	5	5	6	75±3	750	750
7	50	255	4	5	5	6	90±3	750	750
8	100	255	4	5	5	6	110±3	1200	1100
9	100	306	4	5	5	6	125±3	1200	1200
10	134	330	4	5	5	6	145±3	1500	1500
11	134	380	4	5	5	6	165±3	1500	1500
12	50	204	4	5	6	6	70±3	750	750
13	50	306	4	4	6	6	90±3	7550	850
14	100	300	4	4	6	6	120±3	1200	1200
15	134	330	4	4	6	6	150±5	1500	1500
16	134	330	4	4	6	6	165±5	1500	1500
